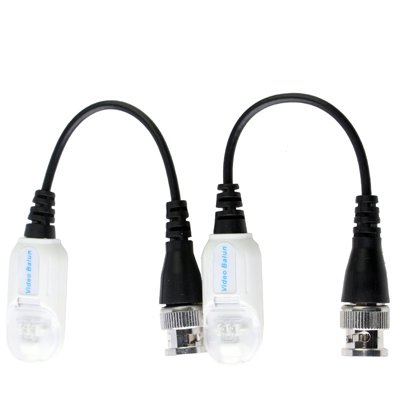

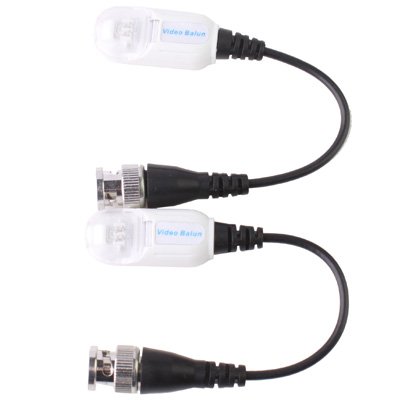

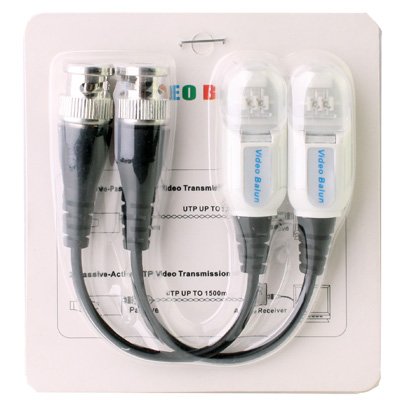

2 PCS Passive UTP Network Video Balun CAT5 to Camera CCTV BNC DVR O-612

₹970.00

Availability: 100 in stock

SKU: S-CVB-0120 Category:

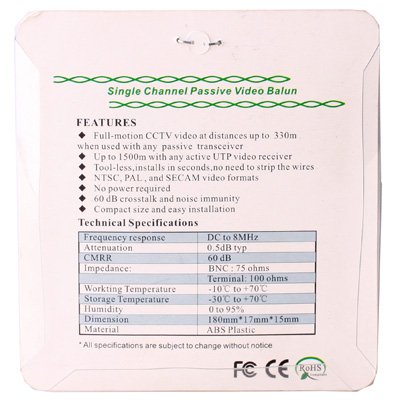

Features
1. Fulll-motion CCTV video at distances up to 330m when used with any passive transceiver
2. Up to 1500m with any active UTP Video receiver
3. Tool-less, installs in seconds, no need to strip the wires
4. NTSC, PAL, and SECAM video formats
5. No power required
6. 60dB crosstalk and noise immunity
7. Compact size and easy installation

Specifications
1. Frequency response: DC to 8MHZ
2. Attenuation: 0.5dB typ
3. Impedance: BNC:75 ohms, CMRR: 60dB
4. Terminal: 100 ohms
5. Working Temperature: -10 degree C to + 70 degree C
6. Storage Temperature: -30 degree C to + 70 degree C
7. Humidity: 0 to 95%
8. Dimension: 180mm x 17mm x 15mm

Specification:
Package Weight
One Package Weight 0.01kgs / 0.02lb
Qty per Carton 180
Carton Weight 10.00kgs / 22.05lb
Carton Size 40cm * 30cm * 30cm / 15.75inch * 11.81inch * 11.81inch
Loading Container 20GP: 740 cartons * 180 pcs = 133200 pcs
40HQ: 1719 cartons * 180 pcs = 309420 pcs

Weight 0.010 g
