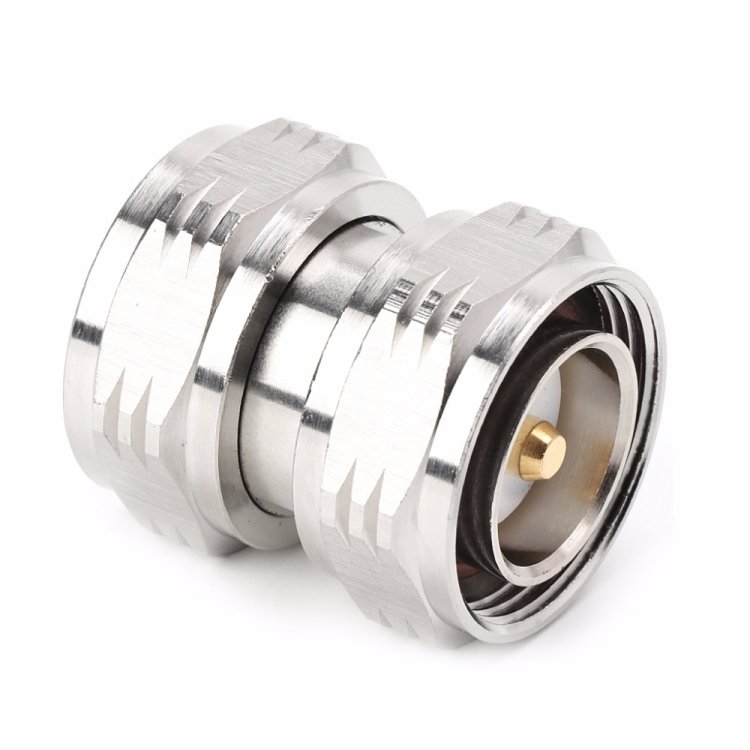

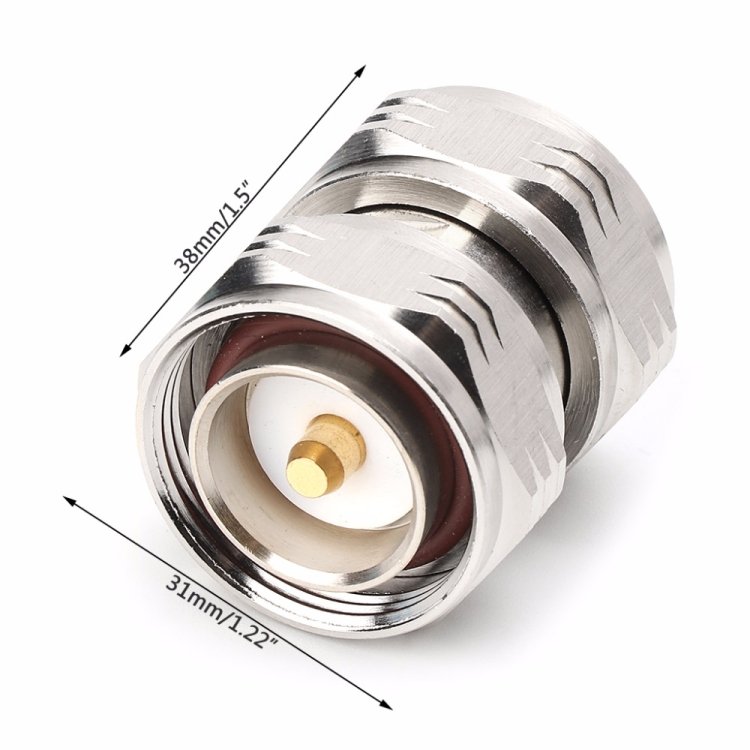

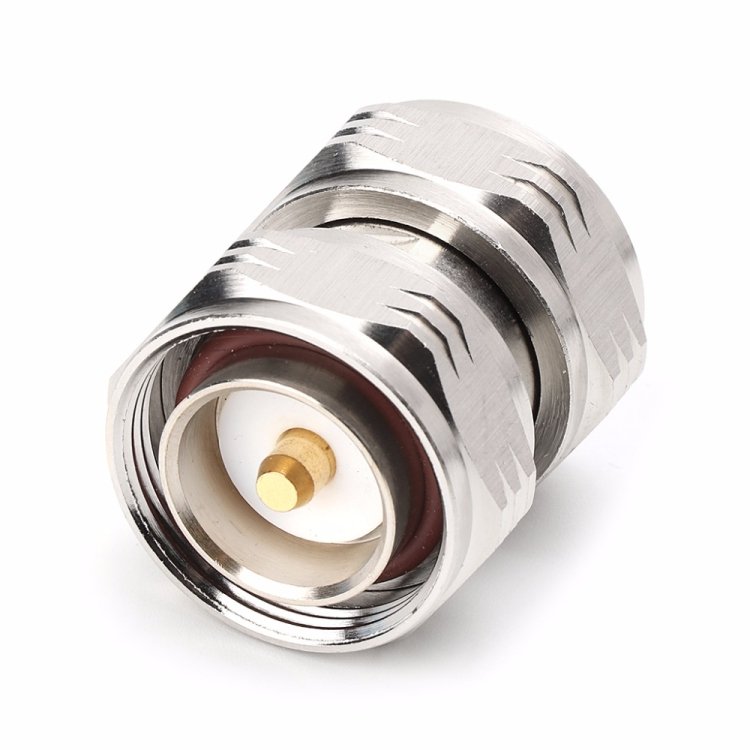

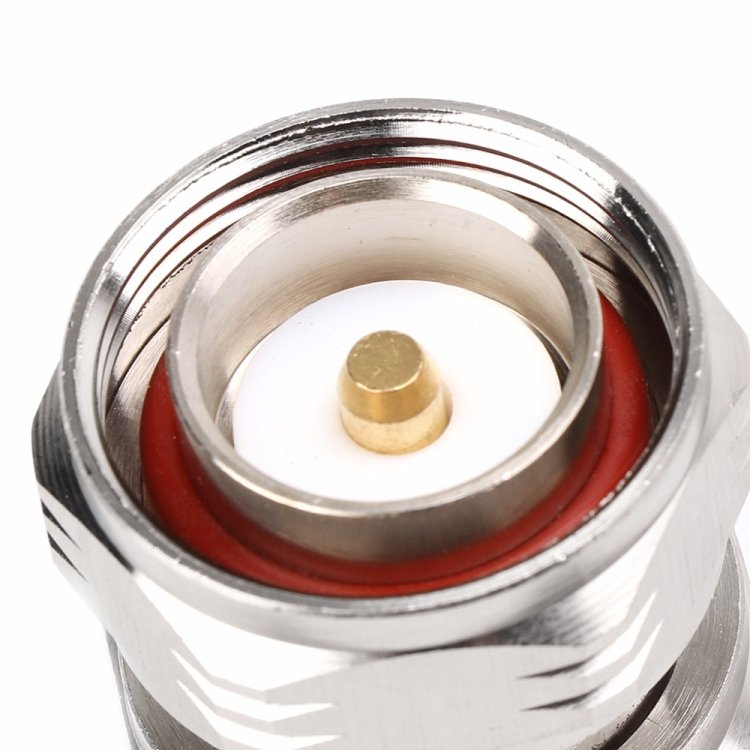

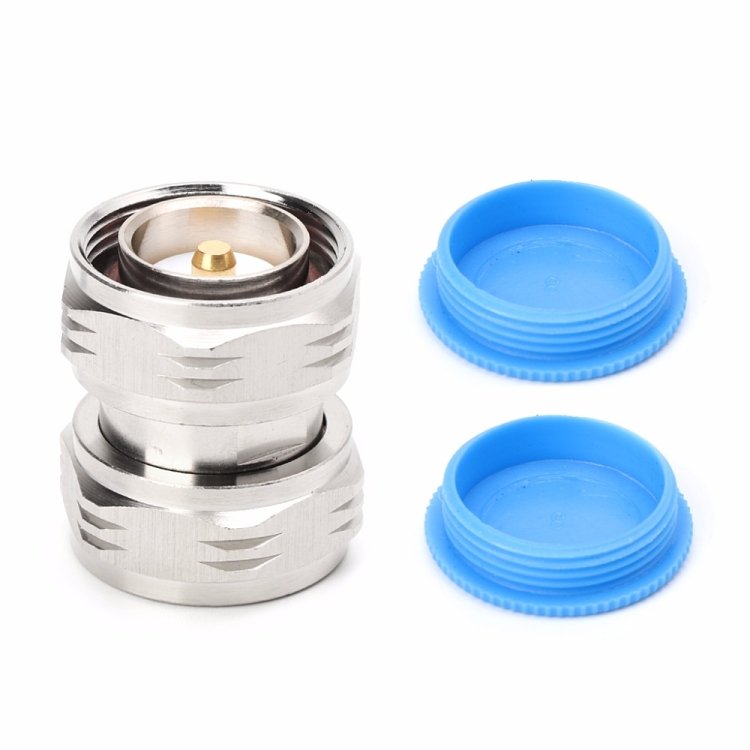

L29-JJ RF Coaxial Adapter 7/16 Din Male To 7/16 Din Male RF Connector

₹1,257.00

Availability: 100 in stock

SKU: SPC0051 Category:

Technical features:
1.Commercial grade 7/16 Din Series connector
2.Connectors: 7/16 Din male to Din male connector adapter
3.Nickel-Plated Machined Brass Construction
4.Gold Plated Contacts – Insulating Teflon

Technical features
1.Temp. Range: -65 to 165
2.Vibration: MIL-STD-202, Method of 213
3.Impedanec: 50 ohm
4.Frequency range: 0-7.0 GHz
5.Nominal temperature: -40 to 85 (degrees Celsius)
6.Data mechanic: Coupling cycles: more than 500
7.Operating voltage: 2700 v rms

Specification:
Package Weight
One Package Weight 0.11kgs / 0.24lb
One Package Size 5cm * 4cm * 5cm / 1.97inch * 1.57inch * 1.97inch
Qty per Carton 100
Carton Weight 11.20kgs / 24.69lb
Carton Size 30cm * 25cm * 22cm / 11.81inch * 9.84inch * 8.66inch
Loading Container 20GP: 1616 cartons * 100 pcs = 161600 pcs
40HQ: 3751 cartons * 100 pcs = 375100 pcs

Weight 0.108 g
Dimensions 5 × 4 × 5 cm
